TOPLINE dishwashing spray unit with swivel spout & 2 mixing valves – single-hole, 105 x 350 mm

  • For easy table mounting
  • single-hole
  • with 2 mixing valves
  • Product dimensions (DxH): approx. 350×1250 mm
SKU: 10532

345,00  excl. VAT, plus Shipping

In stock .

Features & Compatibility

Design

  • high-quality single-hole dishwashing spray unit
  • for easy table mounting
  • including swivel tap and 2 mixing valves
  • made of chrome-plated brass
  • designed for cold & hot water connection
  • spray with handle for stepless jet strength adjustment
  • incl. hold-open clip for continuous operation

Connection values

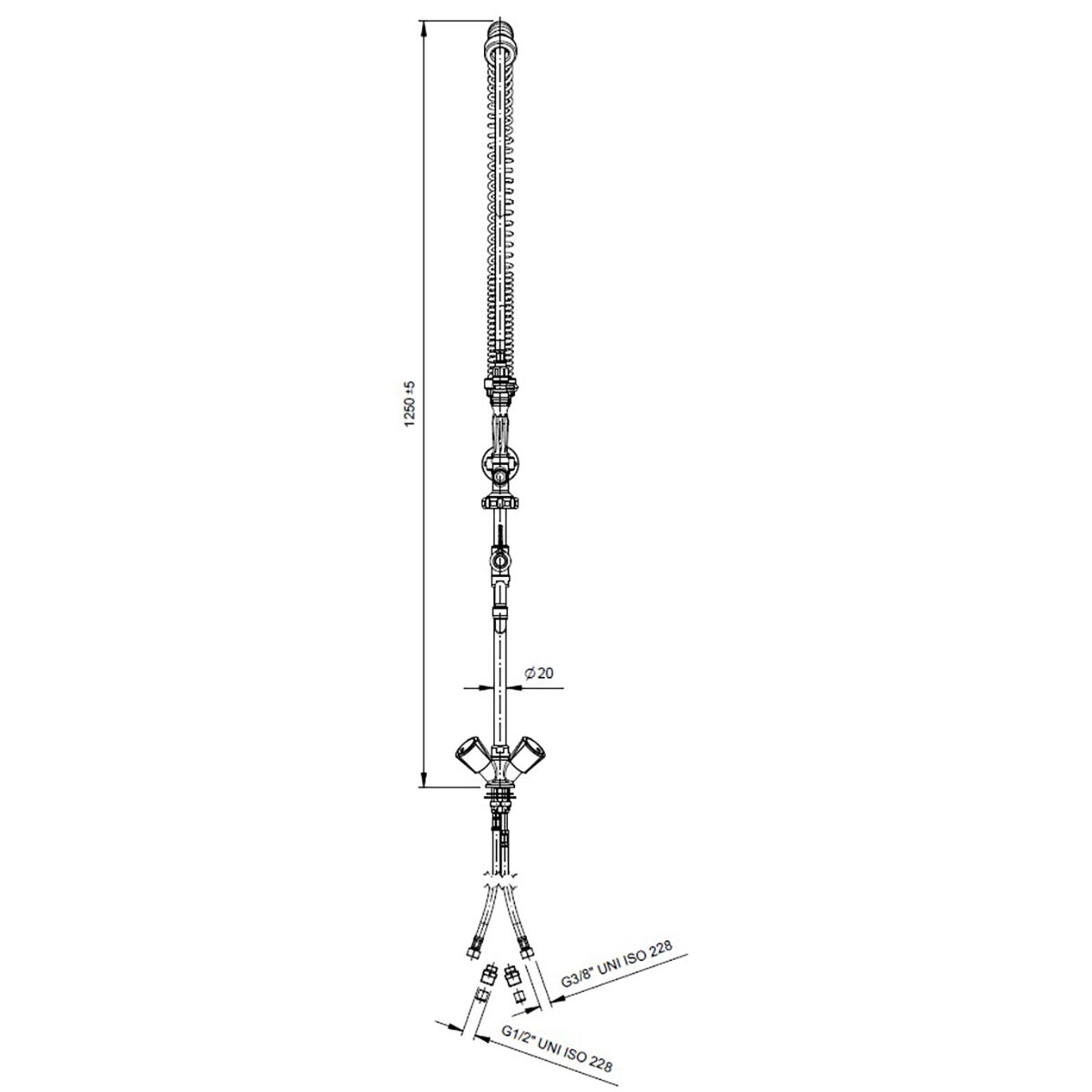

  • Height of dishwashing spray unit: approx. 1250 mm
  • Height of tap: 300 mm
  • Diameter of tap: Ø 18 mm
  • Tap hole diameter: Ø 38 mm
  • Water consumption: at 3 bar water pressure approx. 18 litres / min
  • High-pressure stainless steel hose: approx. 1200 mm

Additional information

Weight5,00 kg
Dimensions35,00 × 10,50 × 125,00 cm
Installation Typetable-mounted
Materialbrass (chrome-plated), plastic, stainless steel
