TOPLINE Dishwasher 50×50 / 230 Volt – Model: VT-S DW50 DRDS, 600 x 600 mm

Discover the premium VT-S dishwasher with modern digital control panel and impressive performance. Thanks to its versatility, it offers 3 different wash programs, enabling up to 30 racks per hour to be cleaned. The integrated temperature display for the tank and boiler ensures optimal rinsing conditions. The innovative thermostop function guarantees thorough final rinsing at a temperature of at least 85°C for reliable disinfection. This machine is equipped with a non-return valve as well as a safety thermostat in the wash tank and boiler to ensure the highest safety standards. Its stainless steel wash arms ensure durable and efficient cleaning.

Design

• Model: VT-S DW50 DRDS
• Rack size (W/D): 500×500 mm
• Loading height: 320 mm
• digital LED display
• temperature display for boiler and tank
• 3 wash cycles: 90/120/180 seconds
• wash temperature: 60°C
• rinse temperature: 85°C
• washing performance: up to 30 racks per hour
• thermostop technology to ensure hygienic cleaning (HACCP)
• incl. non-return valve

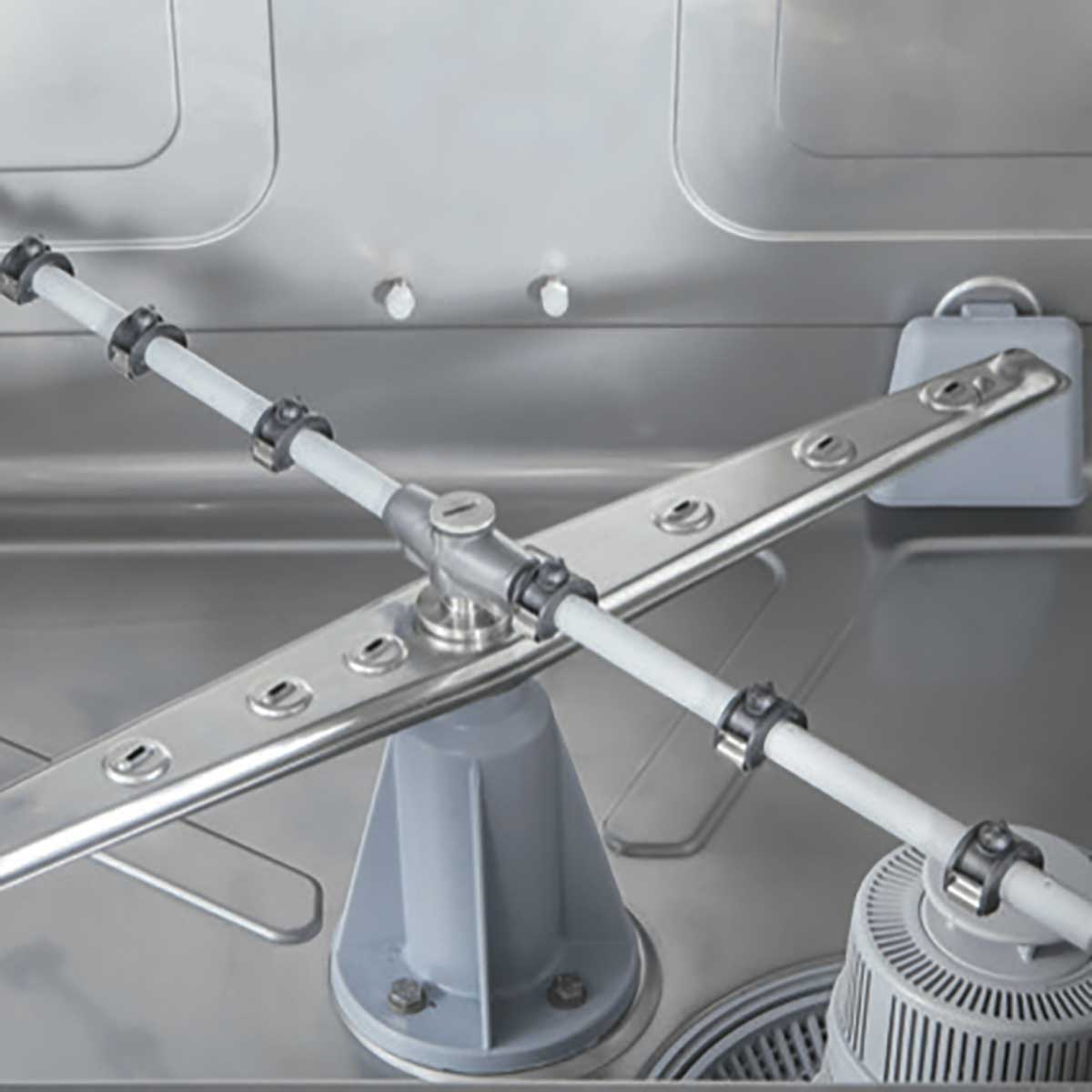

• stainless steel wash arms
• height-adjustable feet
• with built-in detergent dosing pump
• with built-in rinse aid dosing pump
• with built-in drain pump
• with built-in water softener

Scope of delivery

• 1 x plate rack
• 1 x universal rack
• 1 x small cutlery basket

Heating performance data

• Tank: 2.8 kW
• Boiler: 2.8 kW
• Pump: 0.6 kW

Water consumption data

• Tank volume: 25 litres
• Boiler volume: 7 litres
• Tank & boiler are filled only once when the machine is restarted
• per rinse cycle approx. 2.7 litres at a water pressure of 2 bar
• water pressure should be between 2-5 bar

Note: This unit must be commissioned exclusively by a certified specialist company!
